25850.00 - 25850.00
- Power supply:380V, 50HZ, 3 Phase
- Power output:45kw
- Suitable metal:Gold, Silver, Copper, and Alloy
- Melting capacity:4kg
- Max pressure:0.2Mpa

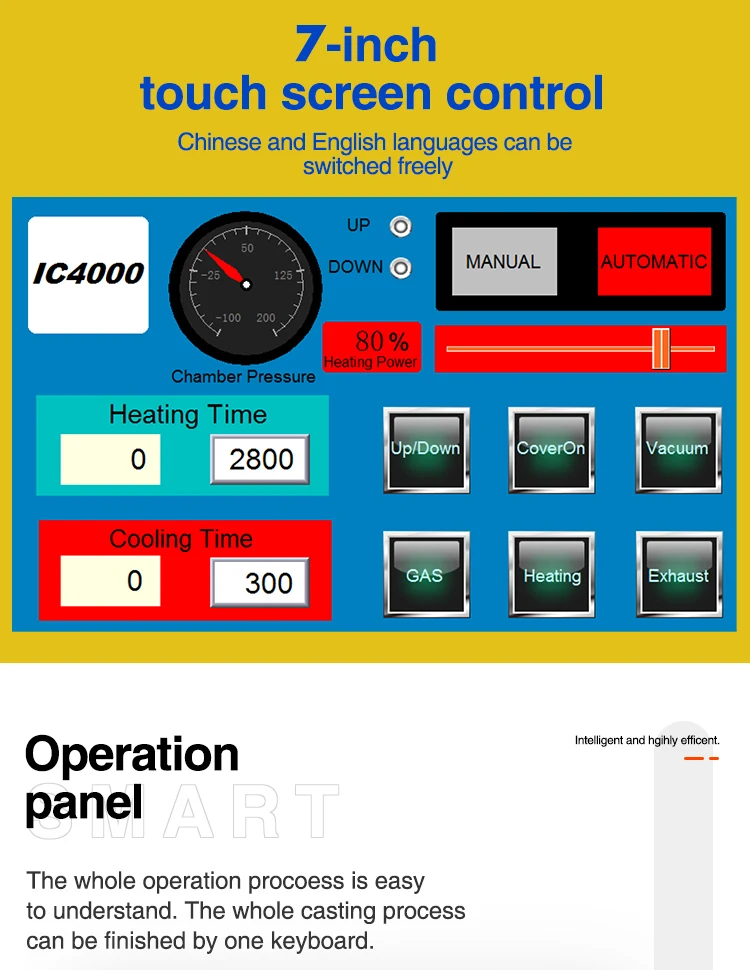

- keyboard languge:Chinese and English
- Temperature range:0-1300℃
- Enviromental temperature:5-40℃
- Machine dimension:1200*620*1020 mm
- Net weight:280kg

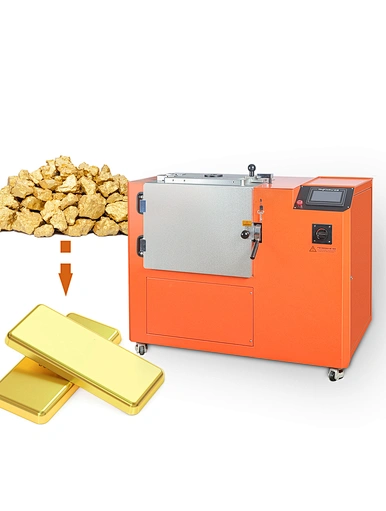

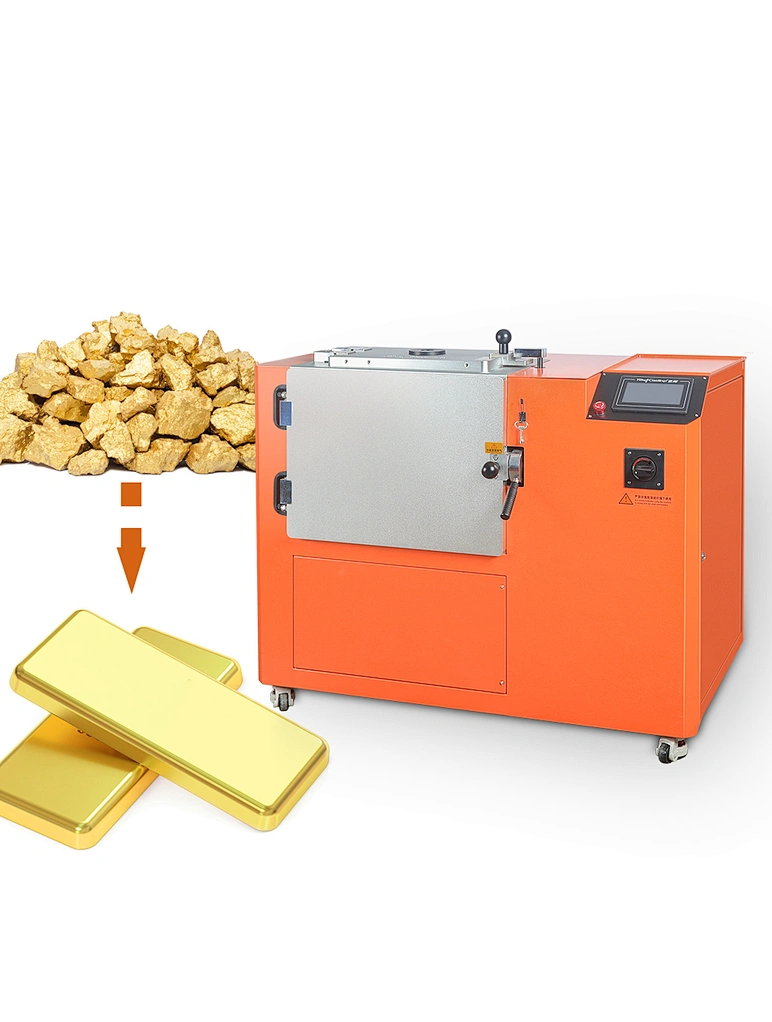

- Jewelry Tools & Equipments Type:casting machine
- Place of Origin:CN;GUA
- Brand Name:Yihui
- Model Number:Z.M.CM.IC4000
| Technical parameters | |||
| Model | Z.M.CM.IC4000 | ||
| Power supply | 380V, 50HZ, 3 Phase | ||
| . Power output | 45KW | ||
| Suitable metal | Gold, Silver, Copper, and Alloy | ||
| Melting capacity | 4KG | ||
| Temp. Rangeumable | 0~1300℃ | ||
| Max pressure | 0.2Mpa | ||
| Protection gas | Argon or over 95% nitrogen | ||
| Type of cooling | water cooling | ||

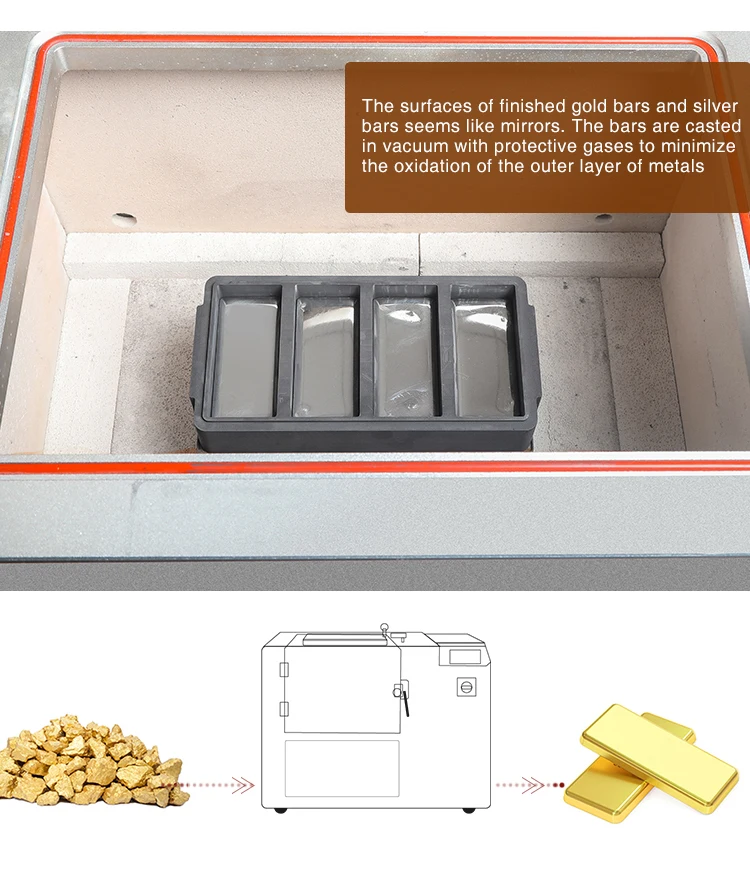

| Casting method | Vacuum pressure casting | ||
| Abnormal warming | Self-diagnostic LED display | ||
| Environmental temp. | 5-40℃ | ||
| Vacuum setting | Vacuum pump set in the cabinet | ||
| Water supply | 10-30℃, and 8P water chiller recommended | ||
| Machine dimension | 1200*620*1020mm | ||
| Net weight | 280KG | ||
Yihui Casting Technology Co., Ltd.
Yihui Casting Technology Co., Ltd., established in March, 2003, through more than 10 years effort, has developed as aprofessional supplier in providing integrated lost wax casting solutions, manufacturing jewelry casting machines and consumable, specializing in casting technology research & development and application. Under Yihui brand, we own Shenzhen Yihui Casting Technology Co., Ltd., Yihui Casting Technology Co., Ltd., Shenzhen Xinhui Casting material Co., Ltd., Guangdong Hanhui Graphite Co., Ltd., Guanghzou Yihui Jewelry Tools Co., Ltd. and other manufacturing and selling companies.
Additionally, Yihuicasting has graphite products making factory, ceramic products making factory, machines making factory and vax. Relying on Yihui brand, cenrering on casting related products, complete products supplying system has been formed. Meanwhile, we are agent of world well-known brand jewelry tools and consumables. Products range covers all the jewelry making procedures, which are widely used in jewelry, watches, glasses, dental, glaze, and other precision loss wax casting industry, which have been exported far to South-east Asia, Mid-east, European and American countries.
