6.67 - 6.67
- Product name:8KG Jewelry Automatic casting
- Suitable Metal:Gold,silver,copper,brass,bronze
- Capatity:8kg Gold
- Color:Orange
- Protection gas:Argon gas or Nitrogen gas

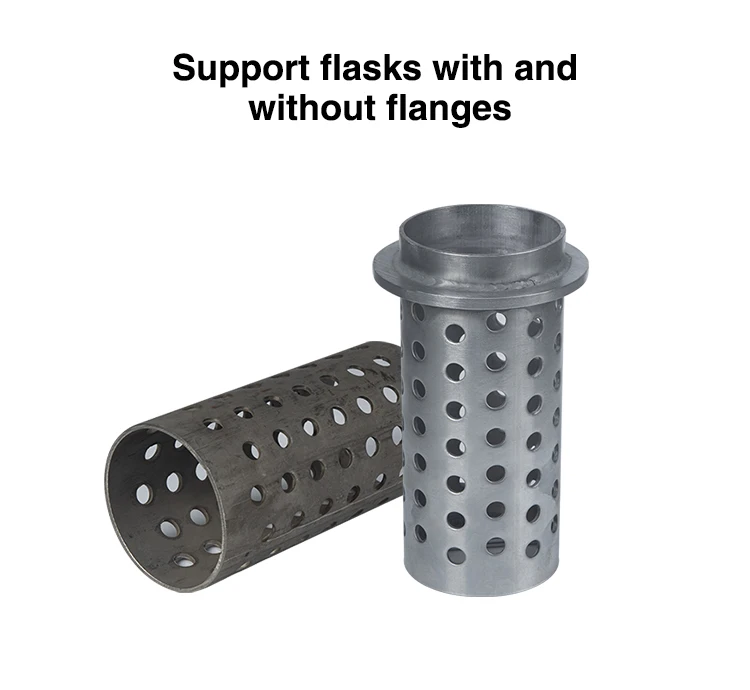

- Flask Size:8.6"*14"
- Casting method:Vacuum pressure casting
- Working temperature range:0-1600℃
- Working time:5-8min
- Type of cooling:Water cooling
- Condition:New
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:PLC
- Core Components:Pump
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support

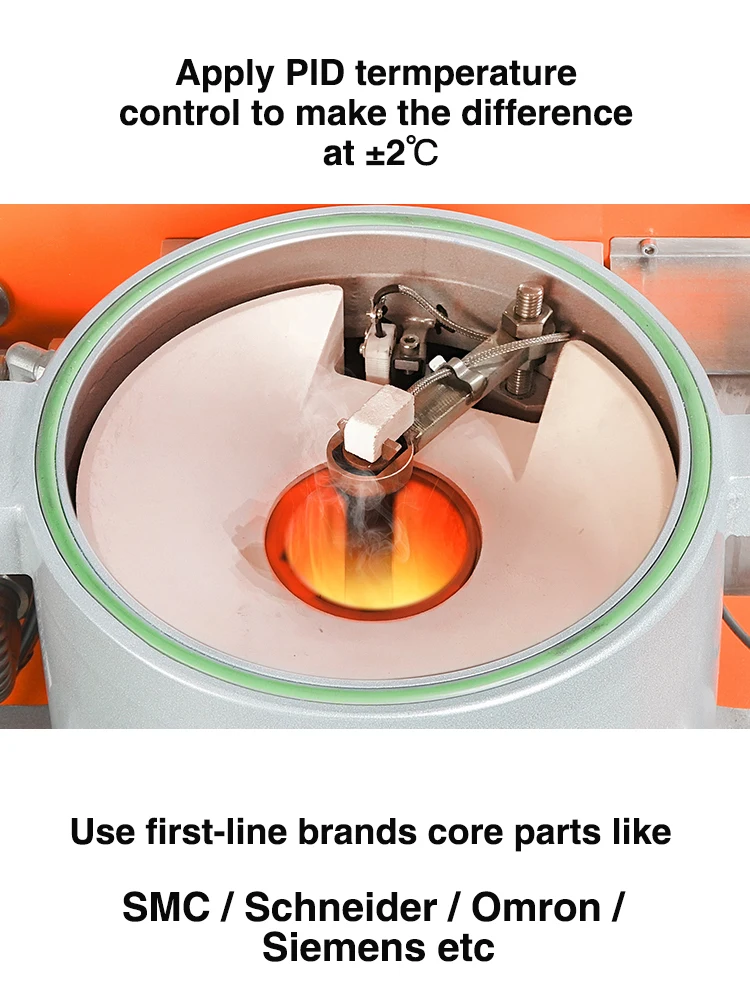

- Key Selling Points:Accurate temperature control
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Germany
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Pakistan
- Local Service Location:India
- Local Service Location:UAE
- Local Service Location:Sri Lanka
- Local Service Location:Bangladesh
- Showroom Location:Germany
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Pakistan
- Showroom Location:India
- Showroom Location:South Korea
- Showroom Location:UAE
- Showroom Location:Sri Lanka
- Showroom Location:Bangladesh
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Place of Origin:CN;GUA
- Machine Type:Casting machine
- Brand Name:Yihuicasting
- Voltage:380V,50/60HZ,3Phase
- Power:15KW
- Dimension(L*W*H):850*770*1420mm
- Weight:300kg
- Certification:ISO9001:2008,CE

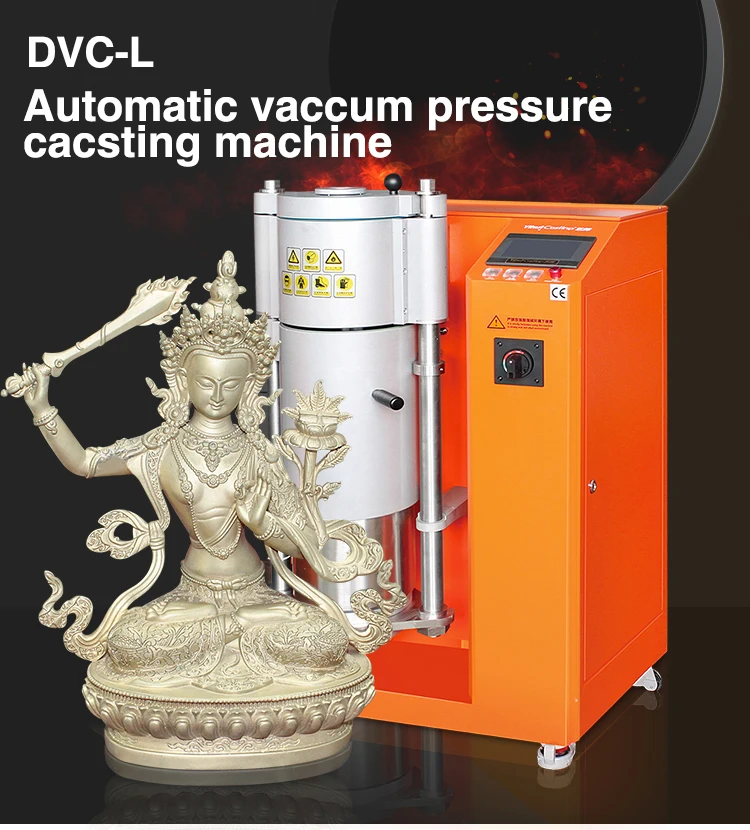

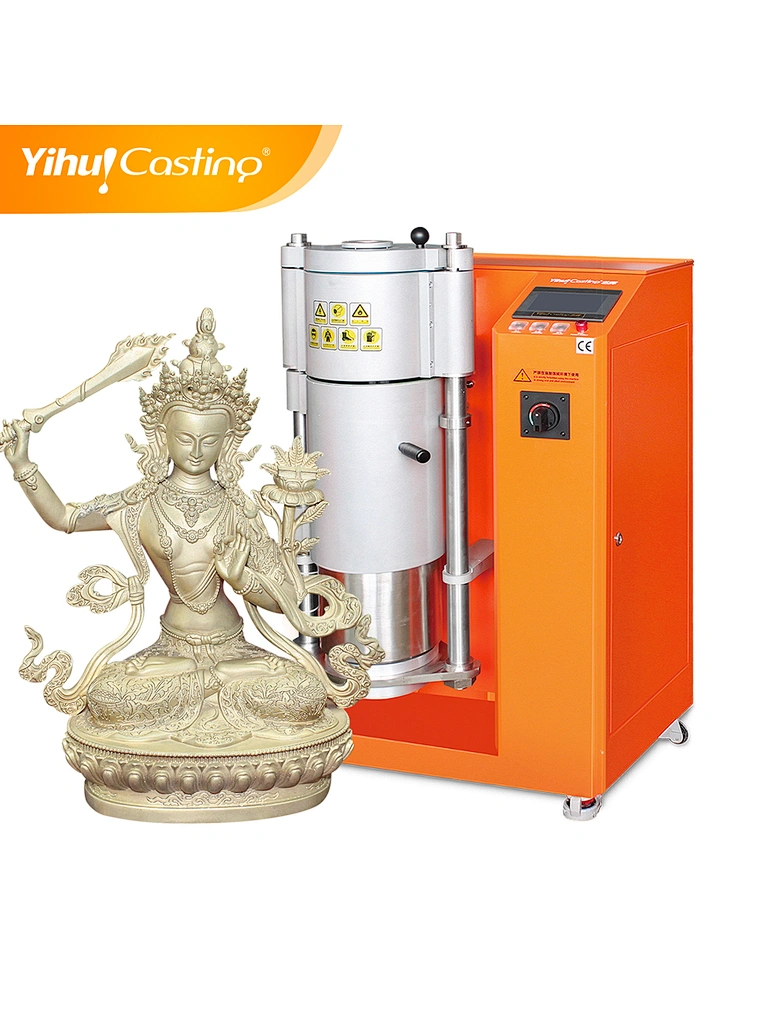

DVC sets casting machine:
DVC sets casting machine are automatic casting system,you only prepare gypsum jewelry mold and jewelry
you want to cast.

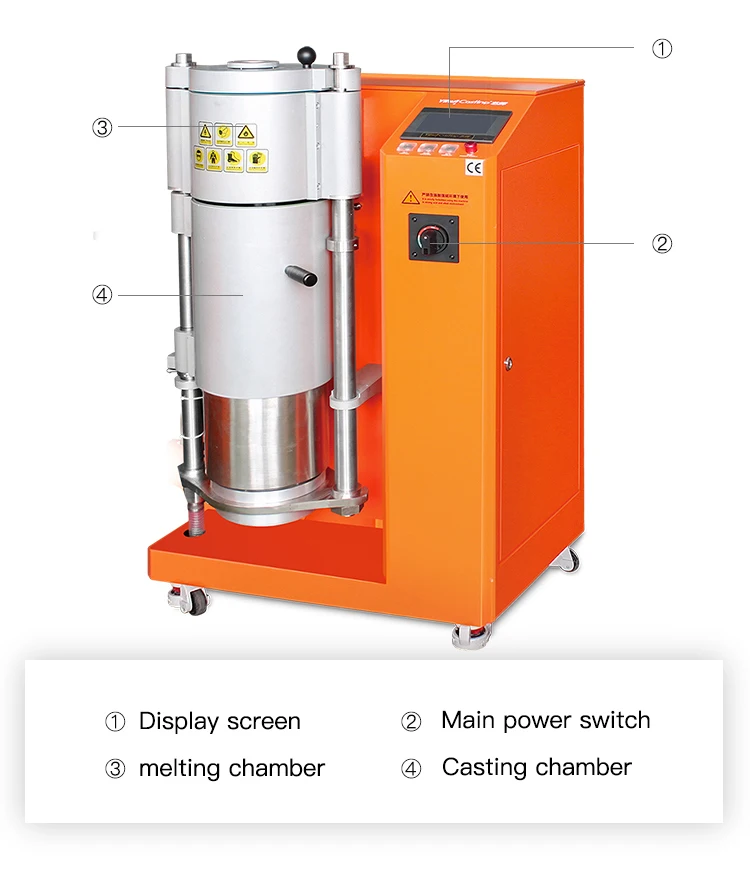

Then put the metal in the upper room,put the gypsum mold you prepare in the down room.

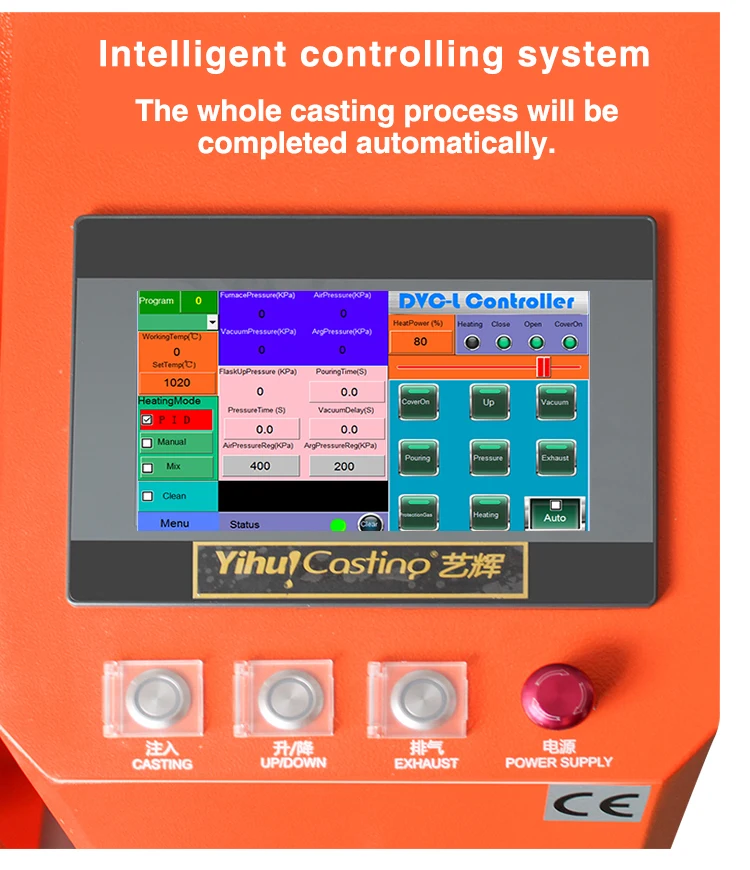

Put on the button in the screen,it will work itself.
After 5-8min it will finish.
Technical Parameters:
| Model | Z.M.CM.DVC-II | Z.M.CM.DVC-L | Z.M.CM.D3 |
| Power Supply | 380V,50/60HZ,3Phase | 380V,50/60HZ,3Phase | 380V,50/60HZ,3Phase |
| Power Output | 8KW | 15KW | 8KW |
| Suitable Metal | Gold,silver,copper,brass | Gold,silver,copper,brass | Gold,silver,copper,brass |
| Melting Capacity | 2.5KG | 8KG | 2.5KG |
| Temp.range | 1-1300Degrees | 1-1300Degrees | 1-1450Degrees |
| Max Pressure | 0.2Mpa | 0.2Mpa | 0.2Mpa |

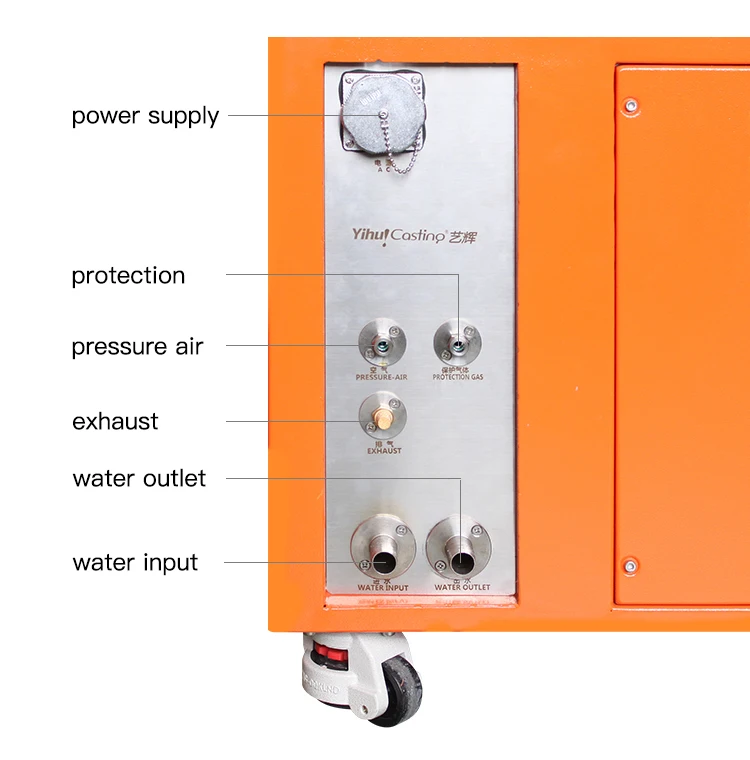

| Protection Gas | Argon gas or Nitrogen Gas | Argon gas or Nitrogen Gas | Argon gas or Nitrogen Gas |
| Type of cooling | Water-cooled | Water-cooled | Water-cooled |
| Casting method | Vacuum pressure casting | Vacuum pressure casting | Vacuum pressure casting |
| Abnormal Warming | Self-diagnostic LED display | Self-diagnostic LED display | Self-diagnostic LED display |
| Environment Temp | 5-40 degrees | 5-40 degrees | 5-40 degrees |

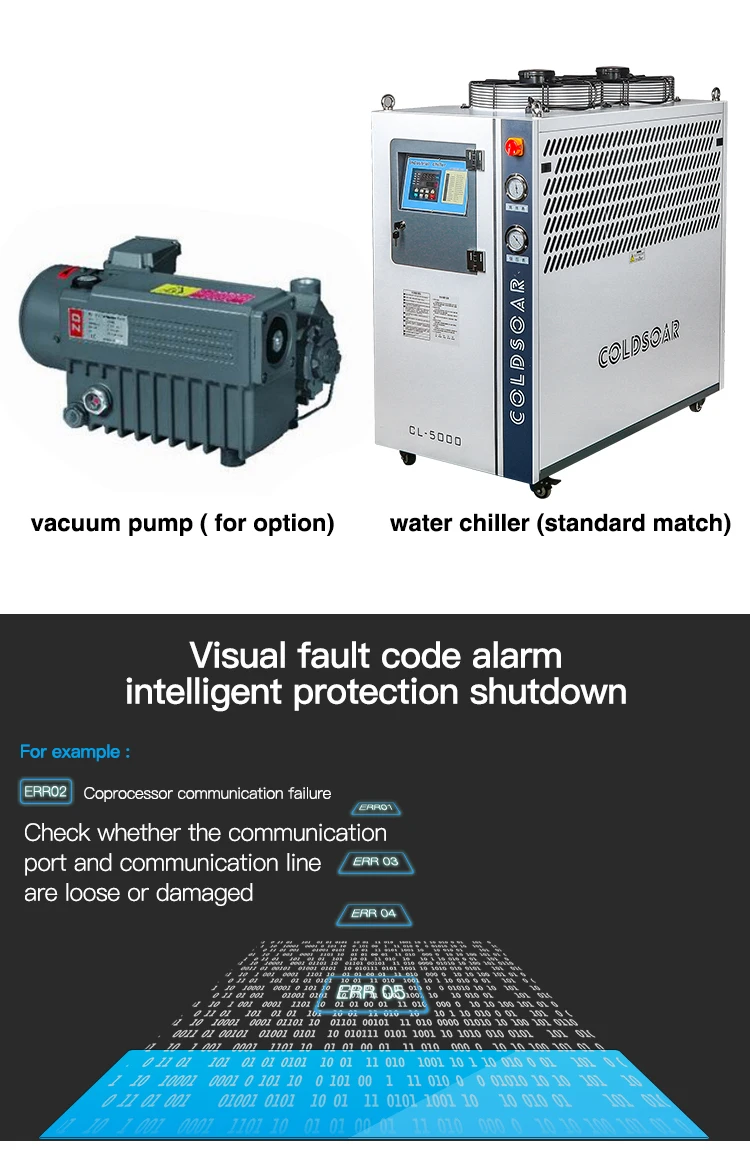

| Vacuum Setting | More than 15L/s or 63m3/h | More than 30L/s or 100m3/h | More than 30L/s or 100m3/h |
| Water Supply | 10-30degrees,3HP Chiller | 10-30degrees,5HP chiller | 10-30degrees,3HP Chiller |
| Machine Size | 750*655*1230mm | 850*770*1420mm | 1230*750*745mm |
| Net Weight | 200KG | 300KG | 200KG |
Company information
Yihui Casting Technology Co., Ltd, established in March, 2003, through more than10 years effort, has developed as a
professional supplier in providing integrated lost wax casting solutions, manufacturing jewelry casting machines and
materials, specializing in casting technology research & development and application. Under Yihui brand, we own S
henzhen Yihui Casting Technology Co., Ltd, Guangzhou Ruihui Casting Machinery Co., Ltd, Shenzhen Xinhui Casting
Material Co., Ltd., Dongguan Yihui Casting Technology Co., Ltd, Guangzhou Yihui Jewelry Tools Co., Ltd, and other
manufacturing and selling companies.
Additionally, Yihuicasting have graphite products making factory, ceramic products making factory, machines making
factory. Relying on Yihui brand, centering on casting realted products, complete products supplying system has been
formed, meanwhile, we are agent of world known brand jewlery tools and consumables. Products range covers all
the jewelry making procedures, which are widely used in jewelry, watches, glasses, dental, glaze, and other precision
loss wax casting industry, which have been exported far to South-east Asia, Mid-east, European and American countries.
