12400.00 - 12400.00
- Color:orange
- Casting method:Flask Vacuum Pressure Casting
- cooling way:water cooling
- Condition:New
- Video outgoing-inspection:Provided
- Machinery Test Report:Provided
- Marketing Type:Hot Product 2019
- Warranty of core components:1 Year
- Core Components:PLC
- Key Selling Points:Auto Vacuum pressure casting
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Germany
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:India
- Local Service Location:Thailand
- Local Service Location:UAE
- Showroom Location:Germany
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:India
- Showroom Location:Thailand
- Showroom Location:UAE
- Place of Origin:CN;GUA
- Machine Type:automatic jewelry casting machine
- Brand Name:Yihui
- Voltage:380V/220V
- Power:6500
- Dimension(L*W*H):72*70*120cm
- Weight:150KG
- Certification:CE
- Warranty:1 Year
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Applicable Industries:jewelry casting machine

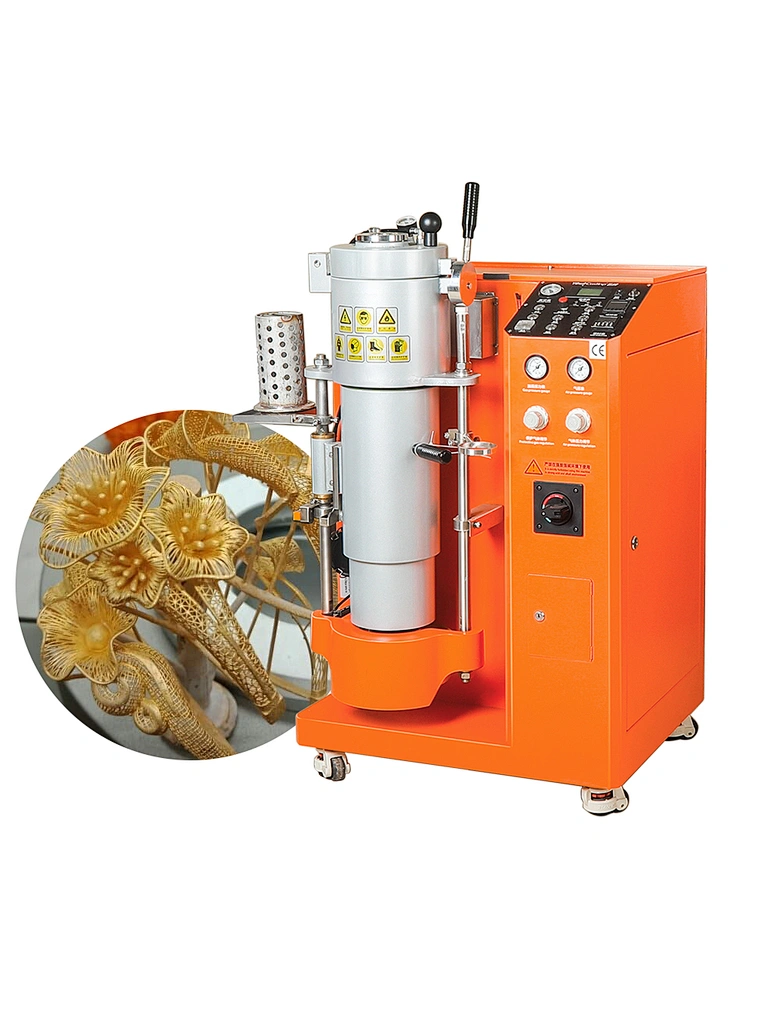

automatic Vacuum pressure casting machine,Yihui brand hot sale jewelry casting machine for
Yihui brand vacuum pressure casting machine has a compact body and high working efficiency.
It adopts electromagnetic mixing induction heating, controls the stirring time independently, and uses the casting principle of vacuum pressure gravity casting to work.
It has its own electrical system protection function, which can be operated manually or automatically.
The body is equipped with an abnormal alarm system. The temperature tolerance is controlled at ±2℃, vacuum and protective gas smelting are used to reduce oxidation.
The simple and easy-to-understand operation interface and process allow each operator to complete the operation independently.
| Model no: Z.M.CM.AVC-Ⅱ | Casting Principle: vacuum pressure gravity casting |
| Power supply: 380V 3Phase 50HZ/60HZ | Abnormal alarm system:Self-diagnosis LED Display |
| Metal: Gold, Silver,Copper | Ambient temperature: 5℃-40℃ |
| Capacity: 2.5KG(Gold) | Vacuum Setting:15L vacuum pump External |
| Temperature: 0℃-1300℃ | Water Supply:3P water chiller(keep water temp (10℃-30℃) |
| Pressure for Casting: Max0.2MPa | Machine Dimension:750×700×1200mm |
| Cooling System: Water cooling | Net Weight:190KG |
1. With PID temp automatci-control system, max temp 1450 degree, temp difference 2 dgree.
2. Unique and strong electromagnetic stirring function helps making even purity of smelted metals.
3. Automatic PC control&induction heating with improved intelligence. Fully automatic or semi automatic control are optional, chinese and english version switch automatically.
4. 50 memory programs make it is easy to examine various parameter or data at any time and immediate reversion.
5. Various casting mode is for your option to make better and correct casting quality
6. Integrated with casting and smelting funtion to one unit, easy operation and save time.
7. The entire casting and smelting process can be seen clealy, so you can adjust realted parameter at any time to guarantee
man and machine safe with pressure-loci system, safe-controlled valve.
8. Melting and vacuum are worked under vacuum condition, oxide will be controlled to minimum.
9. Casting flask can be pushed up and down automaticlly through this machine to ensure you job easier and more convenient.
10. It suitable for various flasks.
11. Big capacity which can contain metal 18K to 24K.
12. Perfect safe-alarm system, system will get off automaticaly when some crror occured to protect inside of the machine.
13. Compact design which requres samll sapce for itself.
14. Beas spreader is for option
15. Elaborately design casting chamber with separated vaccum devices helps discharge bubbles to minimum
16. Display screen show every prcess in enlish or chinese, perfect combination of traditional craft and modern technology,
make your job easy and more efficient.
17. Better fill rates: it provide a smoother, faster flow of metal into the mold, ensuring that patterns fill more quickly and completely.
